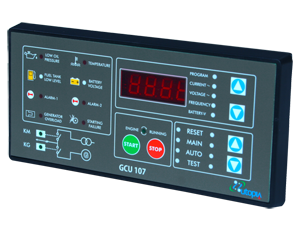

GCU - 107



Description :

GCU 107 provides inexpensive A.M.F and generating set control & monitoring with digital accuracy. This microprocessor based controller includes 6 push buttons, 24 LED lamps, 4-digit display, 6 relay outputs, 8 digital inputs, 5 analogue inputs, 37 programmable parameters, Hour-Meter, Digital Calibration, LED Alarm Indications

Specifications


DC Supply:
Battery plant: 12V-30VDC / 250mA Max Reverse Polarity Protected		 DIN Size / Cut Out:
DIN 492X96 ( Double Size 96X96 )/ 190mm X 93mm
Mains / Generator Input Voltage Range:
24 Vac up to 500Vac		 DC Relay Outputs:
4 Amps dc at supply voltage ( total current of the Outputs)
Operating Temperature Range / Humidity:
30°C to +70°C / 0-95% non condensing		 AC Relay Outputs:
8 Amps / 250Vac ( external 1A Fuses are required )
  Shipping Weight / Box Dimensions:
350Gr. / 245mm X 135mm X 60mm
